Indoor Rental LED Display

About

Brand: Coast Pixel

Pixel Pitch (mm): 2.60mm/2.97mm/3.91mm

Module size: 250×250mm

Cabinet dimension: 500×500/500×1000mm

Viewing Angle:  H:140°;V:160°

Refresh rate:  3840/7680Hz

Application: Indoor

Product Introduction

Function Features

250x250mm module, ZCI2.60, ZCI2.97 and ZCI3.91 models are optional.

500x500mm, 500x1000mm size die-casting aluminum alloy material, stable structure, easy to dismantle; Easy to replace.

The box handle has a lock function, which has a high safety factor and meets the needs of one-person and one-hand installation, saving time and effort.

Foldable anti-collision corners are added to the four corners of the box to effectively protect the edge lamp beads and modules.

High-end large-chip pure black lamp beads are used to achieve ultra-high contrast, high grayscale, non-destructive refresh, and grayscale; optional arc shaped cabinets can truly achieve seamless arc-shaped splicing. Special shaped installation, suitable for different rental occasions.

Excellent sharp colors rendering series, cabinet sizes: 500x500mm, 500x1000mm, using pure black SMD, famous brand driving IC, 3840Hz refresh rate, splicing inner and outer arch is adjustable, compact & humanized design ensure easy assembly and dismantle, cabinet surface using anodized coating technology & anti-oxidation treatment, which is resistant to collision and friction and is suitable for multiple installations and removals during the rental process.

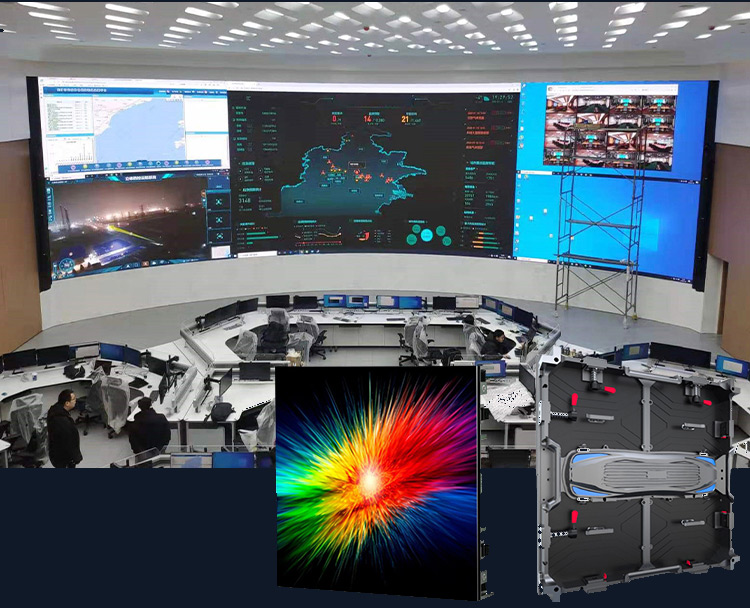

Fine pixel pitch led


Direct view LED video wall technology is becoming increasingly popular due to its ability to deliver seamless images and excellent optimal characteristics that make video wall content look great from any angle.

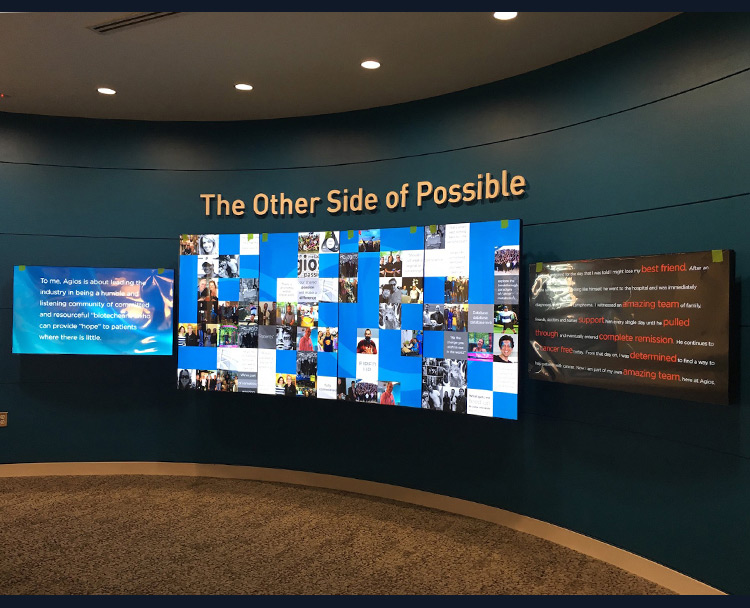

LED Display Wall Solutions


Our wide range of LED display is scalable to any size or shape from high resolution flat and curved viewing indoor solution to unlimited outdoor screen size with waterproof protection.

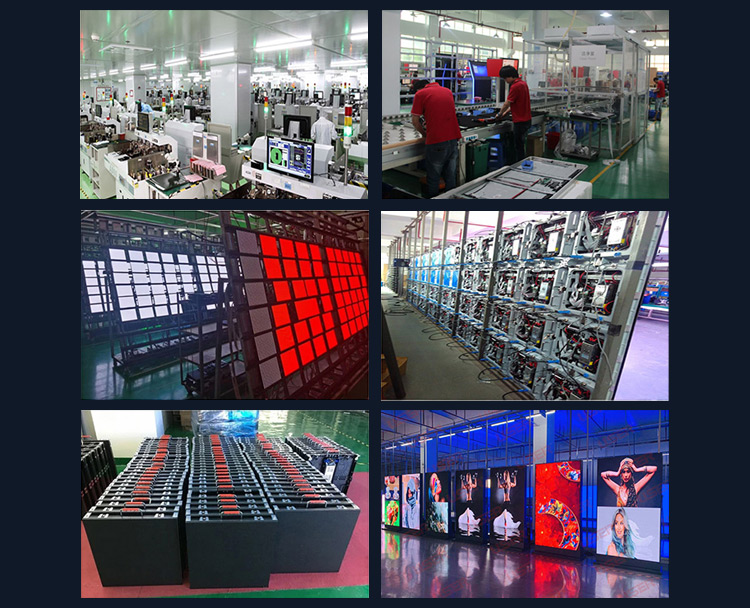

Manufacturing Technique

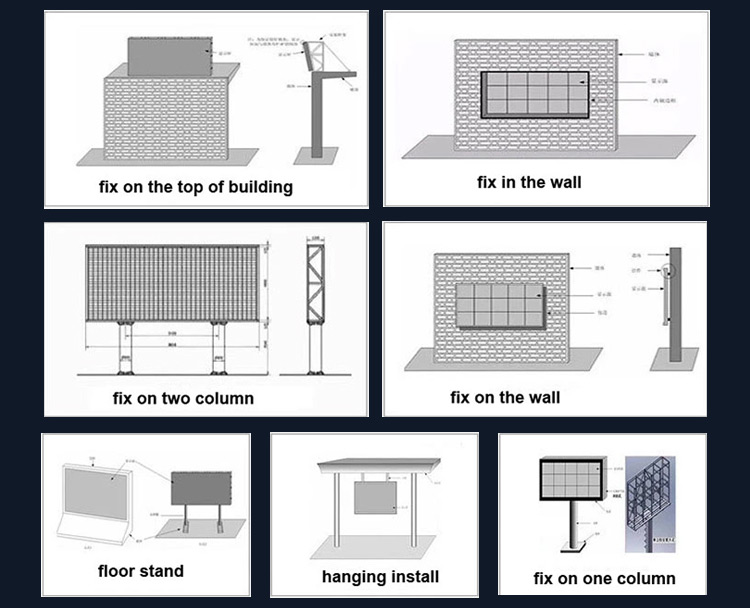

Installation of Outdoor LED Display

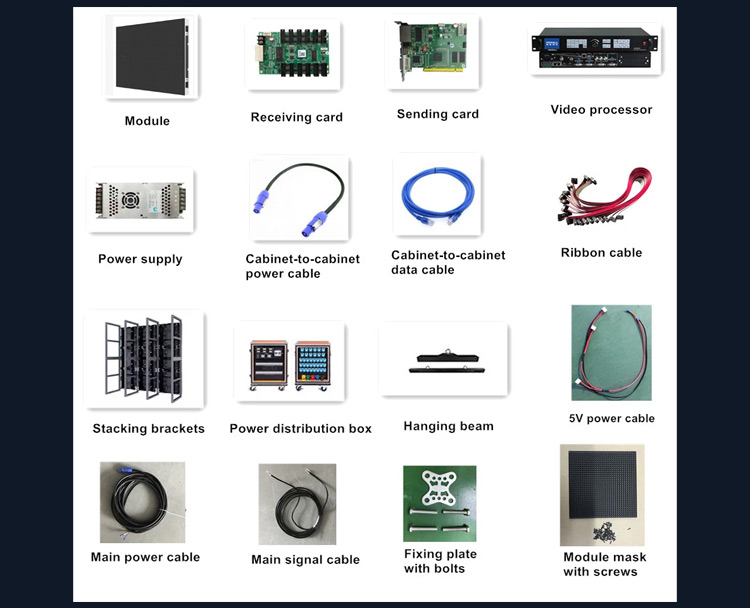

Accessories

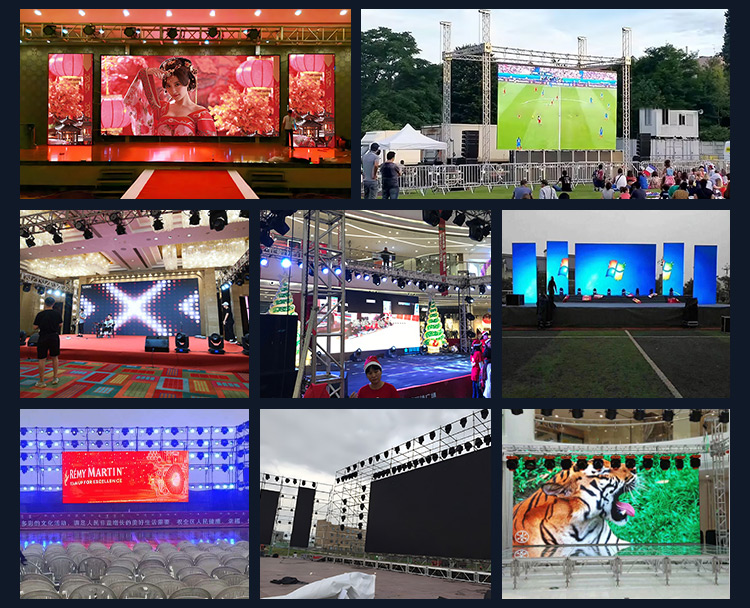

Application scenarios

ItemP2.604P2.976P3.91
Pixel pitch2.604mm2.976mm3.91mm
Module size250×250mm
Module resolution96×9684×8464×64
Physical density147456 dots/㎡112896 dots/㎡65536 dots/㎡
Cabinet resolution pixel192×192/384168×168/336128×128/256
Cabinet dimension500×500/500×1000mm
LED typeSMD1515SMD1515/2121SMD2121
Viewing angleH:140°;V:160°
Refresh rate3840/7680Hz
Brightness≥800cd/㎡
Gray Scale≥12~16bit
Input voltageAC:110V-240V、50-60Hz
Average power consumption200-600w/㎡
IP ratingIP43/45
Cabinet MaterialDie-casting aluminum Cabinet
